Punch Deck Specifications
• 50% Open Surface Area for common rack sizes
• 1 1/2" high "B" Deck Profile
• "Top Hats": 3 1/2" wide
• "Valleys": 2 1/2" wide
• Top Holes: 1 5/8" x 3"
•
Bottom Holes: 1 1/4" x 3 5/16"

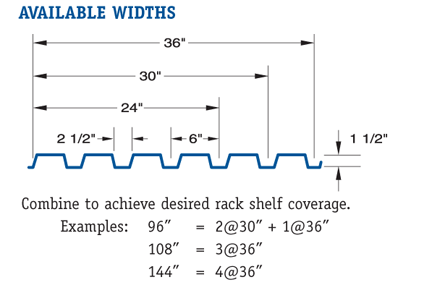

• 24", 30", 36" Widths
• Trimmed Female Edge Available
• 26" thru 144" Lengths
• 3 thicknesses available
• G40 Galvanized Finish Standard
• Requires Tek screws at joints & corners
